New Rotary Vane E2S

New 2-stages Rotary Vane pump E2S

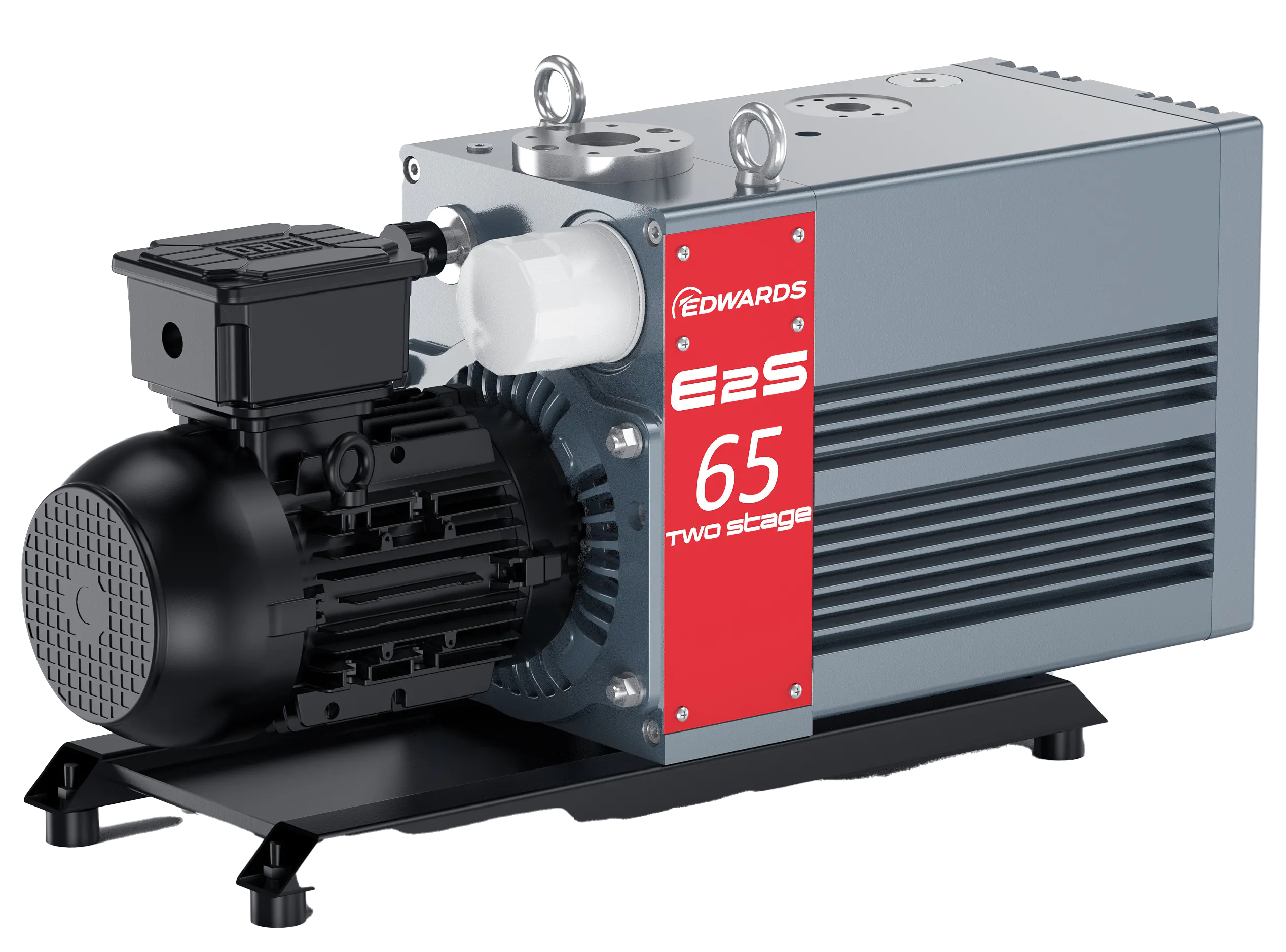

The new E2S range - E2S45, E2S65 amd E2S85 - Is our modern series of industrial two-stage oil-sealed rotary vane vacuum pumps for medium vacuum.

SIMPLE, YET POWERFUL ROTARY VANE PUMP E2S range - E2S45, E2S65 and E2S85 - is our modern series of industrial two-stage oil-sealed rotary vane vacuum pumps for medium vacuum. E2S perfectly balances performance, cost and usability. A reliable piece of engineering, simply made and well-suided for many standard applications. It pumps down fast, handles vapours and contributes to minimising noise level in your workplace.

E2S perfectly balances performance, cost and usability. A reliable piece of engineering, simply made and well-suited for many standard applications. It pumps down fast, handles vapours and contriubutes to minimising noise level in your workplace.

EDWARDS THE PARTNER OF CHOICE Edwards is a world leader in the design, technology and manufacture of vacuum pumps for industrial applications with over 100 years´ history. We belive in delivering results that bring value to our customers by using our breadth of industry experience to identify and apply solutions. Using the most innovative and up-to-date modelling techniques, we can optimise the pumping configuration for customers to provide.a system design giving the maximum performance in the most reliable and cost-effective way.

BOOST YOUR PRODUCTION NOT YOUR EXPENSES

Specialised performance

High pumping speed to reduce cycle times and gain productivity
Hydro mode with improved vapour handling capability to fit with humid applications
Low noise level matching with lab environment expections

Modern design made simple

Economical products with clean layout
Built-in oil filter to protect pump mechanism from contaminants and prevent oil leaks
Innovative design to increase cooling performance keeting high vapour tolerance
Complex mechanical arrangement to keep technology simple

Great usability

Effective product design to accommodate users needs
Easy and pleasant to use and service. On-Site cleaning to maximise uptime
Efficient over-temperature protection and low oil level detection (optional features)
Increased safety against operator misuse

E2S oil sealed rotary vane sizes


		E2S45	E2S65	E2S85
Peak pumping speed	m³/h	47	64	87
Ultimate vacuum	mbar	3.0x10-3	3.0x10-3	3.0x10-3
Ultimate vacuum with gas ballast	mbar	6.0x10-3	3.0x10-3	3.0x10-3
Max water vapour pumping rate	Kg/h-1	0.62	0.66	0.73
Noise level	dBA	58	60	60
