iDx Dry Screw
Plus larger capacities if combined with Roots Boosters
Atm. to 0.05 mbar
Increased productivity and product quality
Industry proven, tried and tested
Specifically designed for chemical applications
Designed and tested for safety and reliability
Stable operation, even during process upsets
Low cost of ownership
Easy maintenance, low utilities consumption
and no cooling gas injection required
The IDX1000 is the benchmark in performance for fast pump-down of large chambers and high capacity pumping for industrial processes
IDX pump sizes
|
|
||
| IDX1000 | IDX1300 | ||
| Pumping speed | m³/h | 1000 | 1300 |
| Ultimate pressure | mbar | 0.05 | 0.05 |
| Power Motor | kW | 30 | 30 |
| Noise | dB(A) | 82 | 82 |
Based on the double-ended screw technology, the IDX Dry Vacuum Pump will give you all the reliability and performance you want for your process. The IDX outperforms all other dry pumps in robustness, performance and ease of operation, giving you faster pump-down from atmosphere and managing higher throughput at low pressures.
Dry pumping systems reduce energy costs, eliminate effluent and can give significant improvements in product quality, making them the ideal solution for many coating and metallurgy processes.
Product Features
ENVIRONMENT
- No effluent generated. - Dry running mechanism. - Efficient solvent recovery. - Low power.SIMPLICITY
- Low parts count. - Balanced rotor design. - No compression plate. - Industry standard motors.MAINTENANCE
- On-site seal and bearing change. - Flushable with water, solvent or steam. - Low rotational speed. - Cooled and filtered oil. - Integral accessory modules.PERFORMANCE
- Continuous from atmosphere to ultimate. - Excellent temperature control. - Large liquid slug capability.
DOCUMENTATION & VIDEOS

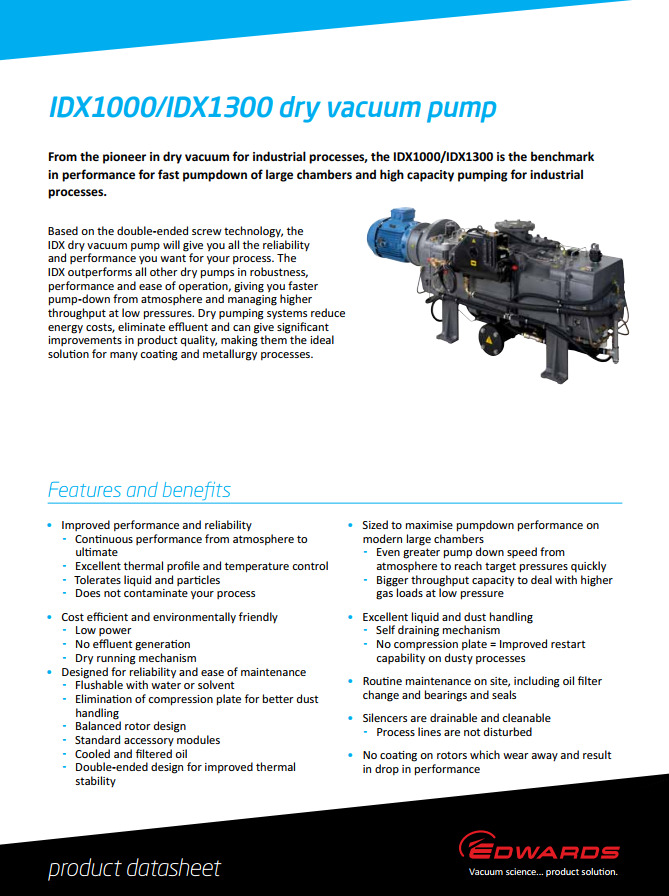

IDX Datasheet
